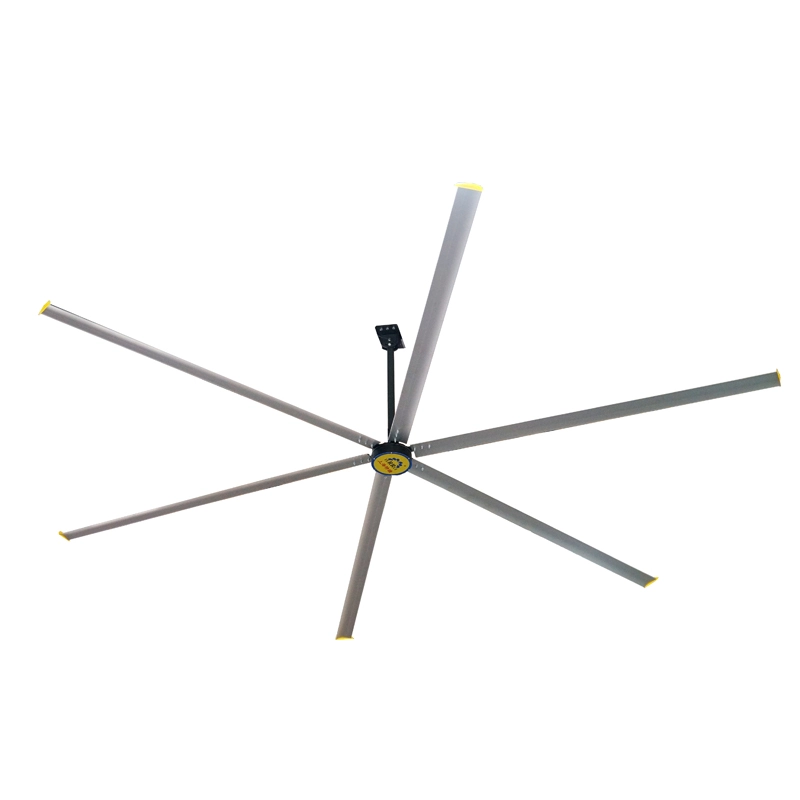

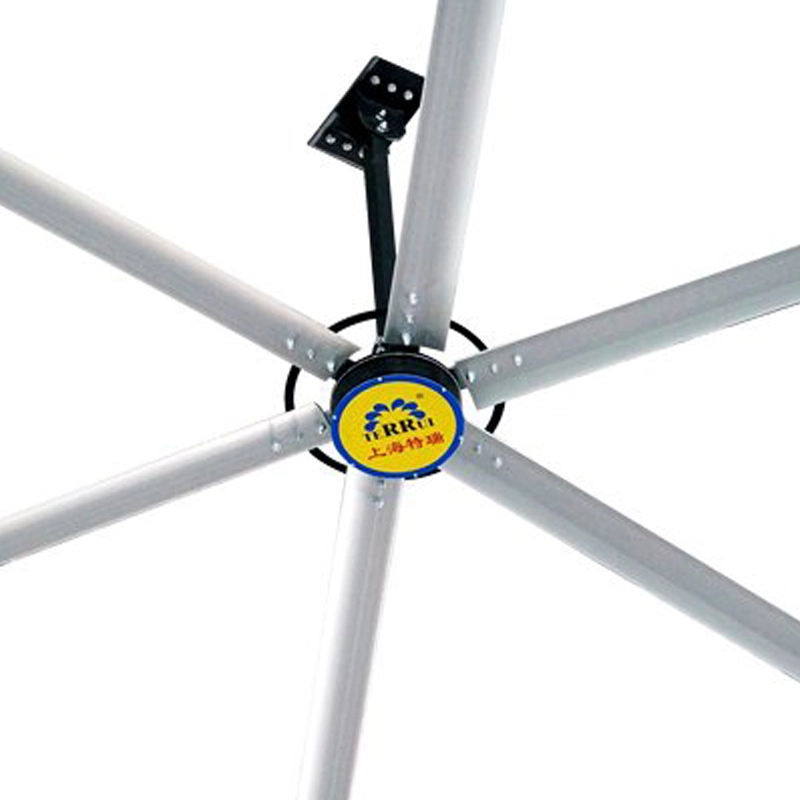

The 24FT six blade ceiling fan motor adopts an advanced external rotor permanent magnet synchronous motor, which is efficient, energy-saving, quiet, stable, and maintenance-free for life, and the operating efficiency is more than 80%. Large-scale fluid mechanics simulation design of the blade surface, increased wall thickness, 4 stiffeners in the inner cavity, high-performance aluminum alloy, electrostatic spray treatment on the surface, wear-resistant and easy to clean. Cooperate with the control system to make the six-blade ceiling fan control more intelligent.
| Part No# | Name | Power | Air Flow (cfm) | Drive Mode | Blade Size mm |
| YBA073AL06EC | 24FT ceiling fan with 6 blades | 1500 | 420000 | direct | 7300 |
| Item | Parameter/Description |
| Product Name | 24FT/7.3M Ceilling fan |
| Product Model | YBA07306ECA0 |
| Size | 7300mm/24FT |
| Installation | Adaptable to various roof types with different clamps |
| Power | 3Ф/380V/50HZ |
| Max Airflow | 14300m³/min |
| Coverage Area | 1400m² |
| Blade Diameter | 24FT/7.3m |
| Blade Material | 6pcs Alloy |
| Motor | Outer rotor permanent magnet brushless DC motor |
| Rotation Speed | 55r/min(20%-100% speed control) |
| Current | 2.8A |
| Input Power | 1500w |
| Air Volume/W | 9.53m³/min |
| Protection Level | IP55 |
| Noise | ≤36dB |
| Quality Inspection | (1) Fan dynamic balance test (2) Noise test (3) Vibration and rotational concentricity performance test (4) Fan blade speed test (5) Airflow test (6) Overall efficiency test |
The 24FT six-blade ceiling fan motor adopts advanced external rotor permanent magnet synchronous motor, high efficiency, energy saving, quiet, stable, life-long maintenance-free, operating efficiency of more than 80%.
Blade surface large fluid mechanics simulation design, increased wall thickness, 4 reinforcement bars in the inner cavity, high-performance aluminum alloy, surface electrostatic spraying treatment, wear-resistant, and easy to clean. With the control system, the ceiling fan with 6 blades control is more intelligent.
The 24FT ceiling fan blade is made of 6005 aluminum alloy blade, which has good balance, large air volume, and low noise to ensure air circulation in the use place.

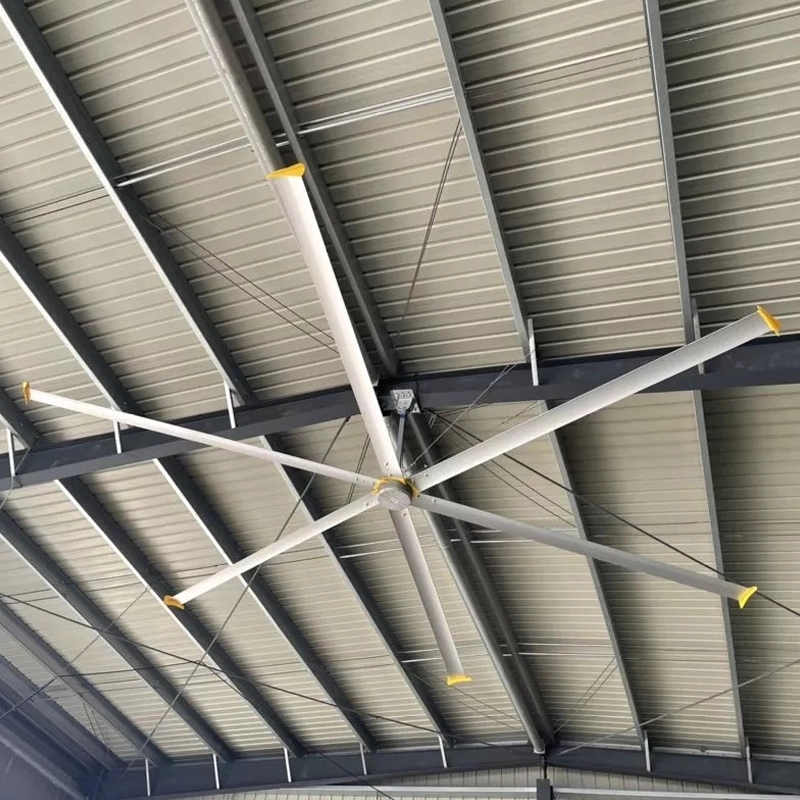

Large ceiling fans with 6 blades are widely used, such as machining workshops, gymnasiums, ranch milk halls (such as the fan for poultry farm), etc.
